Creation of prototype tools

Toolmaking

Combination of craftsmanship and the latest technologies

Competence – Precision – Flexibility – Experience

The creation of prototype tools is one of the main tasks of our tool shop. We use a wide variety of plastics and steels, guaranteeing economical and process-optimized production. This results in precisely matched forming tools according to the materials to be processed and the quantities to be produced.

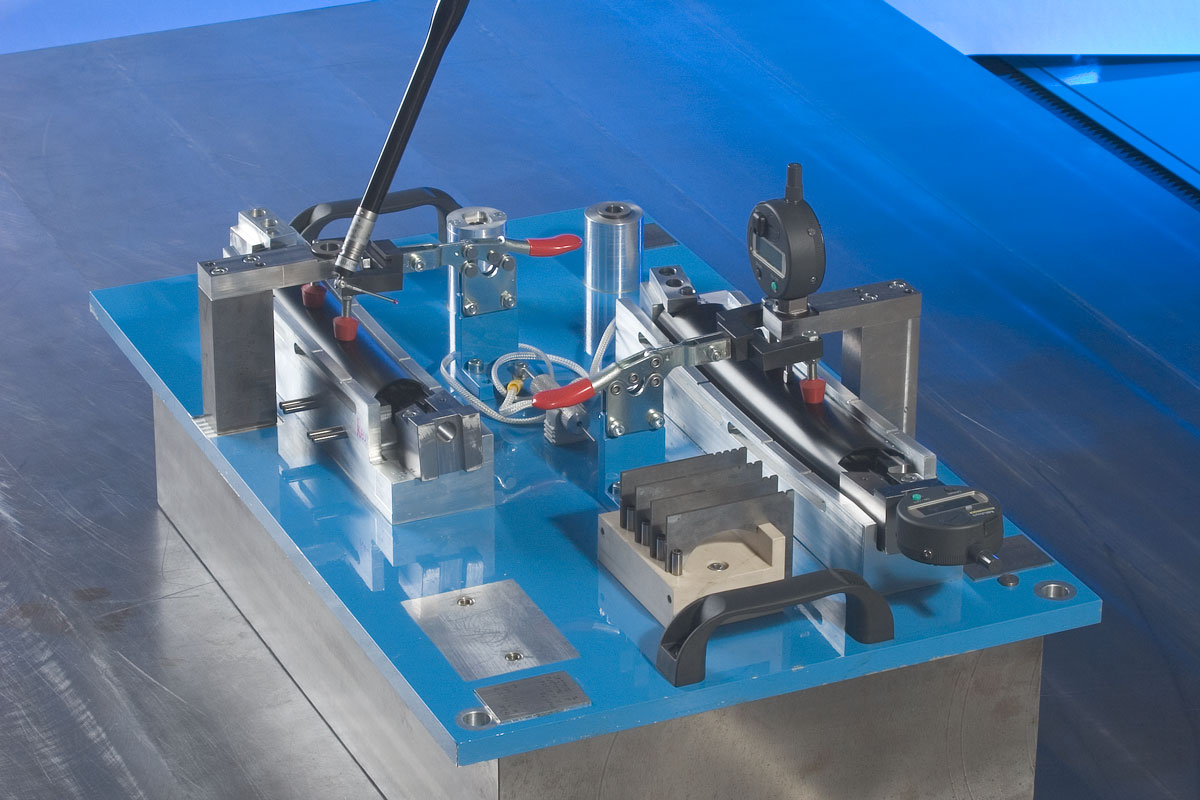

Complex joining devices and sophisticated measurement fixture complete our manufacturing program.

Individually tailored to customer needs

Range of services

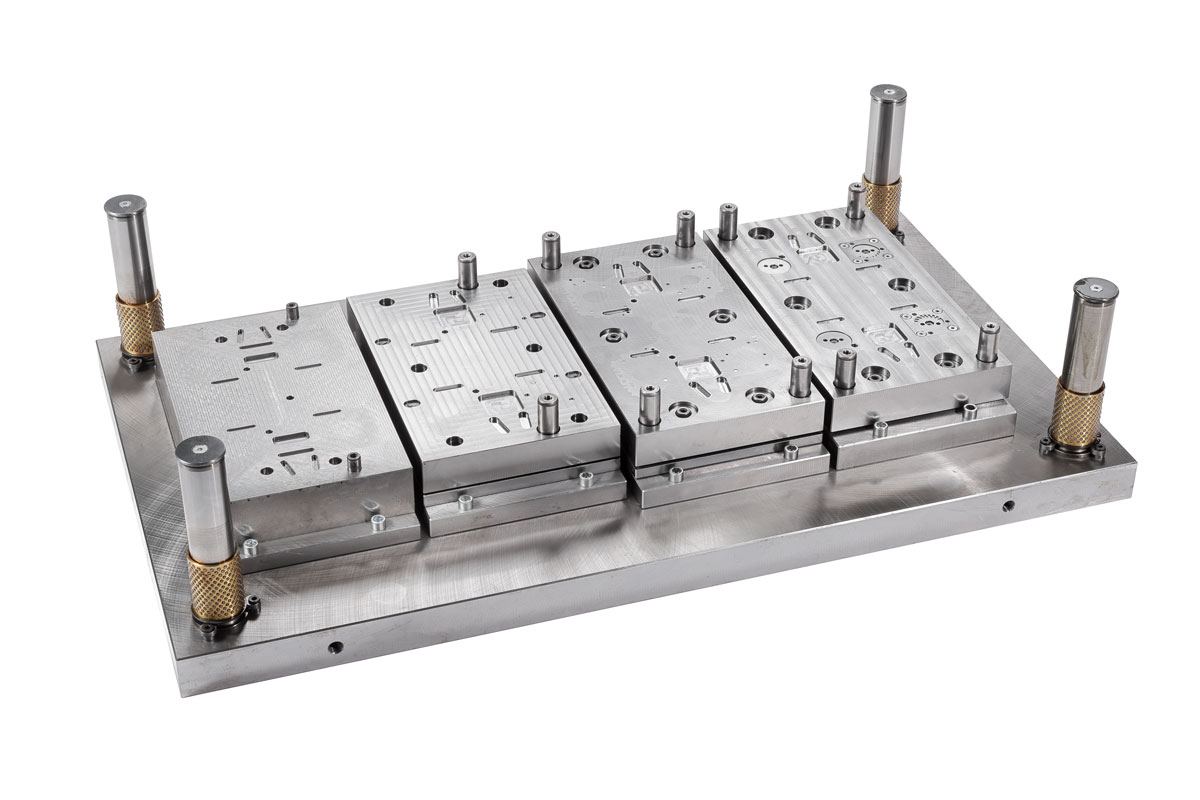

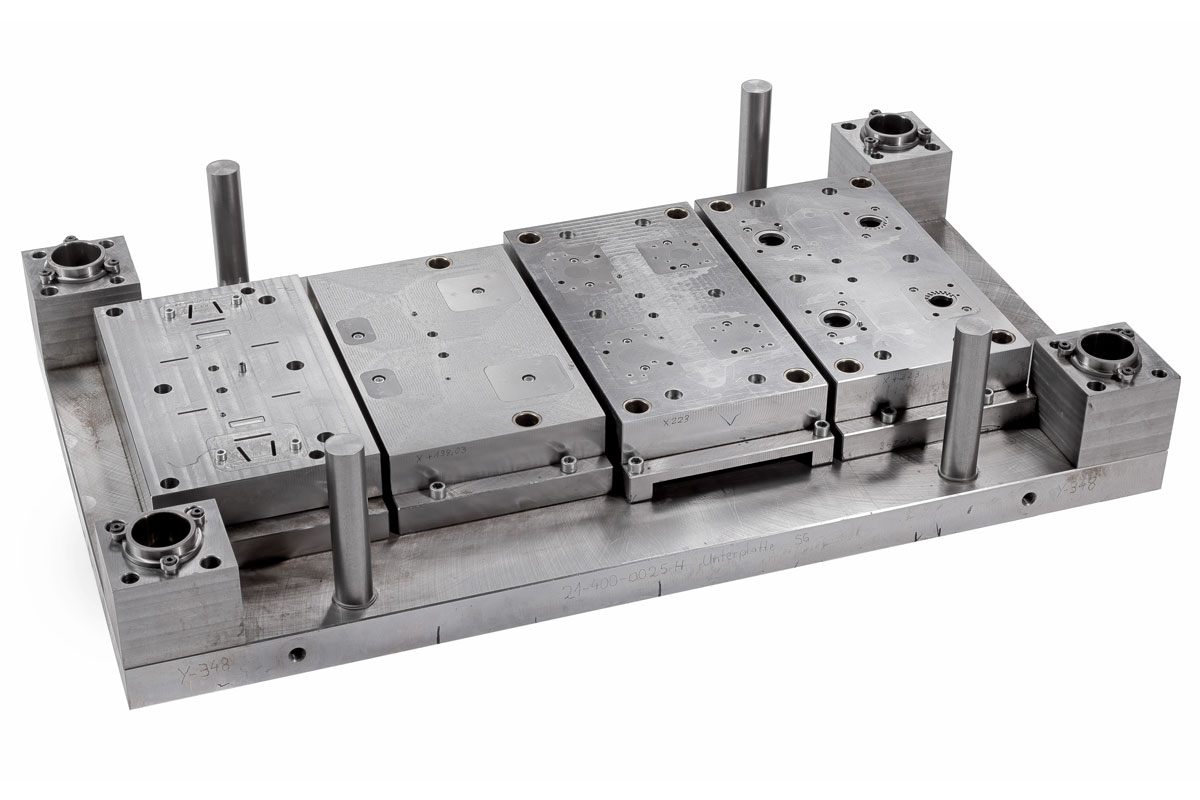

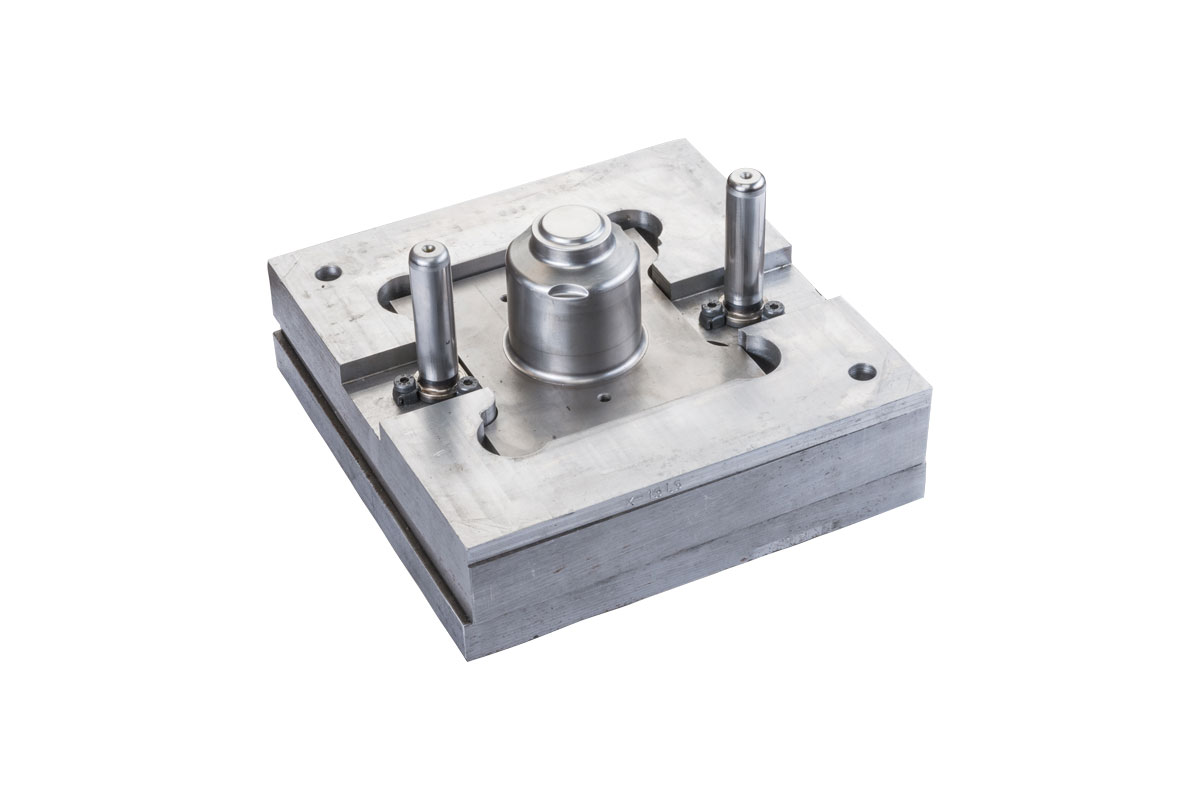

  • Manufacture and machining of forming and punching tools for prototype and small batch production

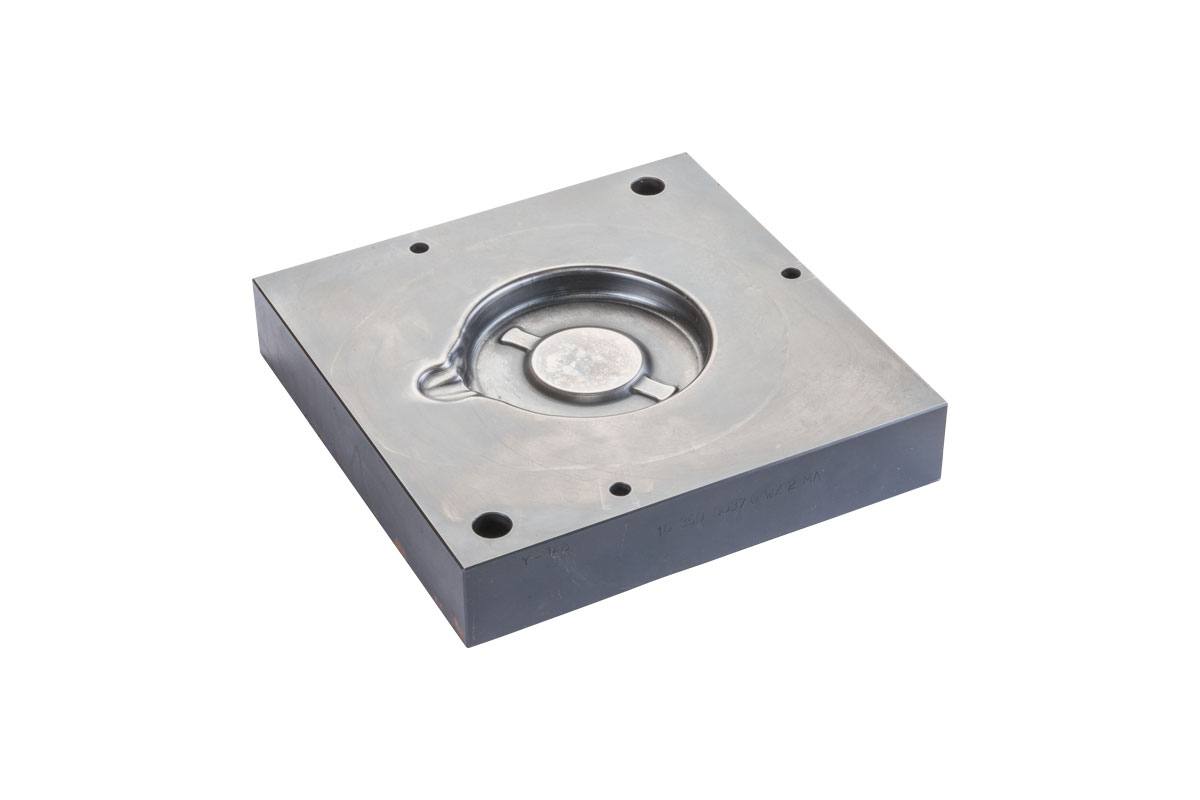

  • Production of die inserts for forming tools

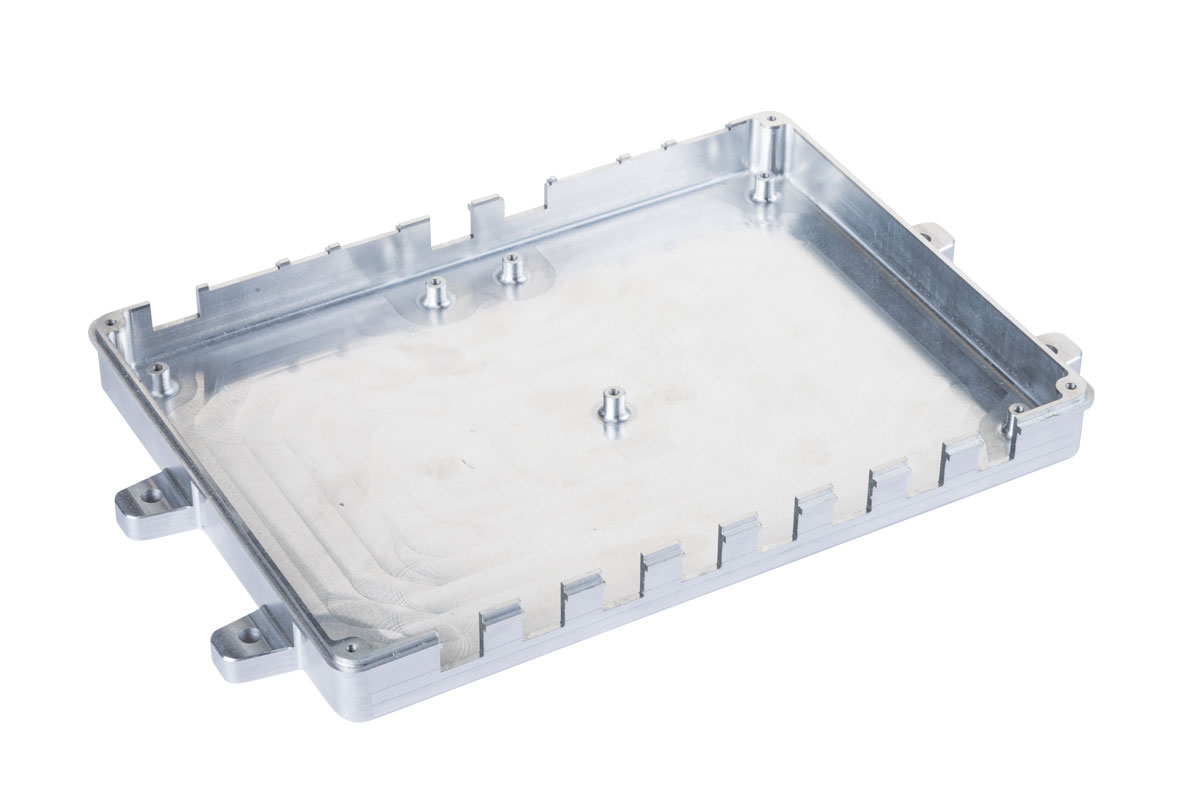

  • Milling of workpieces made of cast iron, steel or plastic up to 6t raw part weight

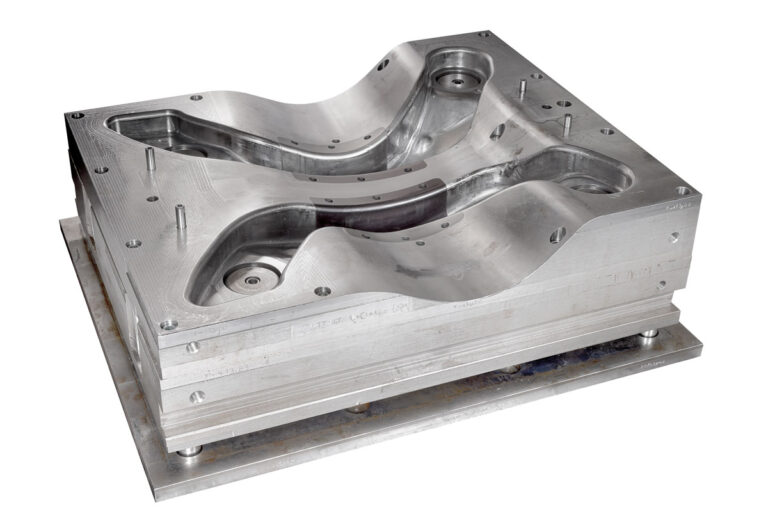

  • Realizion of complex deep drawing tools through 5-axis simultaneous machining
  • High-speed and hard machining
  • Offline programming with modern HyperCAD programming software

Technical data

  • Available for use:
  • 3-axis machining centers with movement paths up to 2200 x 1750 x 750 mm
  • 5-axis machining centers with movement paths up to 4200 x 2050 x 1100 mm
  • CNC turning machining center with a working area Ø 300 x 700 mm
  • NC surface grinding machine with a working area 600 x 400 x 375 mm

References from toolmaking

As a development partner to the automotive and supplier industry, equipment and medical technology and various other industrial sectors, we combine our many years of experience with constant innovations and the latest technologies.
